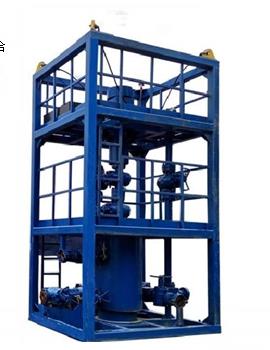

Cyclone sand filter

The cyclone desander is a kind of combined spiral vortex produced by leading the wellbore fluid into the cyclone tube tangentially.

By using the density difference of each phase medium, the separation is realized under the action of centrifugal force.

It can safely and efficiently remove the solid particles in the well fluid when the viscosity of the backflow liquid is high, and can be accurately measured.

Main technical parameters

Working pressure: 35MPa(5000Psi)-105MPa(15000Psi)

Working temperature: P-U(-29C-121C)

Working medium: crude oil, natural gas，H2S，fracturing sand

Gas capacity: 200*10*4Nm³/d

Liquid capacity: 100 m³/h

Material grade: EE
