Rotary drilling rig bit can be also named Core Barrels, they are used to cut an annular ring in rock or concrete or reinforced concrete. The center core of the rock or concrete is usually crushed with rock auger. The most important advantage of a core barrel is that it assists to concentrate the torque and crowd force on a small ring of cutting teeth.
Description
Core Barrel, Roller Bit, drilling bit, rotary drilling bit, tricone drill bit, tci bit
Product Details:
Place of Origin: | Tianjin, China (Mainland) |
Brand Name: | GRAND |
Certification: | ISO9001 ISO14001 API |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
Packaging Details: | Wood box (free-fumigation) |
Payment Terms: | T/T, L/C |
Supply Ability: | 500 Pieces per month |
Detailed Product Description
Model Number: | Core Barrel With Roller Bit | Material: | Q345B 45# Alloy Steel |
Color: | Requirement | Advantage: | Europe Standard High Quality |
Application: | For Strong Rock Formations (Compressive Strength ≥130Mpa). | Kelly Box Type: | Bauer Sany Soilmec IMT... |
Machine Type: | Rotary Drilling Rig | Size: | 520mm-2500mm |
Part Name: | Core Barrel With Drilling Teeth |
Size | 520mm-2000mm |
Application | - For strong rock formations (Compressive strength ≥100Mpa). |
Features | - Kelly Box size 130; 150; 200mm - Roller Bits are API Certificated, complete of bearing and carbide insert |
Suitable for Rotary Drilling Rig | BAUER, SANY, XCMG, SOILMEC, MAIT, IMT. |

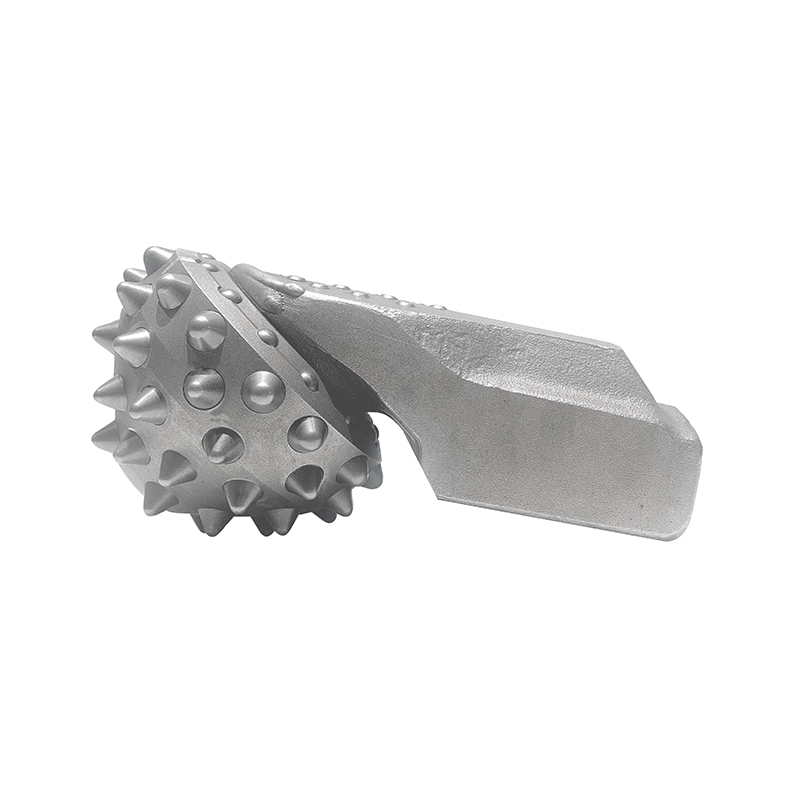

Roller Bits > API Certified > Forging Process > Welded Type or Replaceable Type > Sealed Bearing And Tungsten Carbide Insert |
Cutting Ring > Material: Q345B > Thickness: 30mm; 40mm > Height: 170mm; 250mm: 400mm |
Cylinder > Material: Q345B > Thickness:16mm, 20mm, 25mm, 30mm > Height: 1200mm, 1500mm, 2400mm |
Kelly Box > Material: Q345B > Plate weled type > Size: 130mm, 150mm, 200mm |
Core barrels are generally divided into two types:
1- Core barrel with bullet bits (Applicable for strong rock up to 100Mpa or rock with deep cracks)
2- Core barrel with roller bits (Applicable for very strong rock formations with Compressive strength greater than 100Mpa)
Cutting Diameter Range: 600-2500mm
Core Barrel with Roller Bit
Drilling Dia.(mm) | Barrel Length(mm) | Barrel Thickness(mm) | Roller Bit(pcs) |
600 | 1200 | 16 | 4 |
700 | 1200 | 16 | 4 |
800 | 1200 | 16 | 6 |
900 | 1200 | 16 | 6 |
1000 | 1200 | 16 | 8 |
1200 | 1200 | 16 | 8 |
1250 | 1200 | 16 | 10 |
1300 | 1200 | 16 | 10 |
1400 | 1200 | 16 | 12 |
1500 | 1200 | 16 | 12 |
1600 | 1200 | 16 | 14 |
1800 | 1000 | 20 | 16 |
2000 | 800 | 20 | 18 |
2200 | 800 | 20 | 18 |
2500 | 800 | 20 | 20 |
