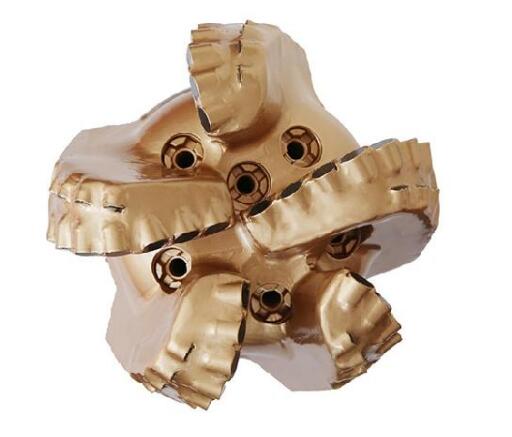

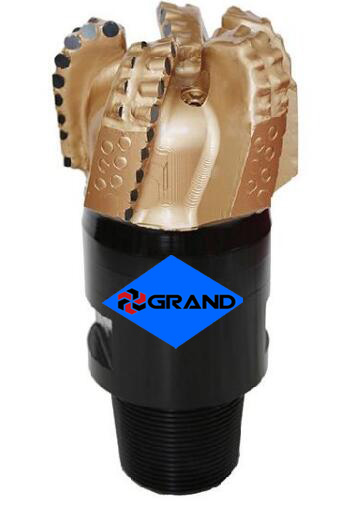

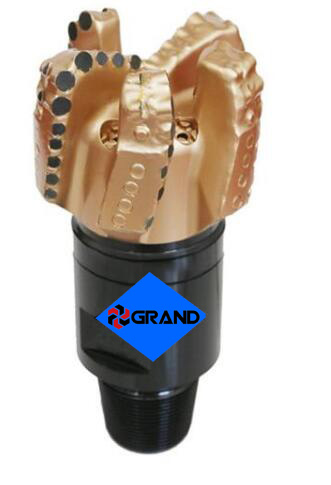

Steel Body PDC Bit 9 1/2''S1955FC

•Deep blade and medium parabolic configuration design,ensures optimal bottom hole flow pattern and anti-balling.

•Optimize the cutting structure and places high quality cutters at different points, increases wear resistance and offensive of the bit.

•Anti-whirl design improves ROP and enhances drilling stability.

Inquire Now

Description

Spiral Blade

Double rows spiral five blades design,allows greater borehole coverage and better cutting structure,maximized enhances wear resistance and stability of the bit.

Gauge

Unique gauge with high quality PDC cutters, helps several-fold increasing wear resistance and stability of the bit.

High Density Cutters

High density PDC cutting structure design,ensures efficient reaming and drilling while extending the application and performance range of casing running operation.

Hardfacing

The surface of the blade is welded by wear-resistant hardfacing material, improves wear resistance and erosion resistance of the bit.

Technical Data

Bit	SPECIFICATIONS					RECOMMENDED PARAMETERS
Size	Number of Blade	Primary Cutter Size	Nozzle Qty	Gauge Length	Connection	Rotary Speed (rpm)	WeightOn Bit (KN)	Flow Rate (Ips)
9-1/2”	5	19inm	7	2"〜3.5"	6-5/8"APlREC	60-250	20~110	30-40
