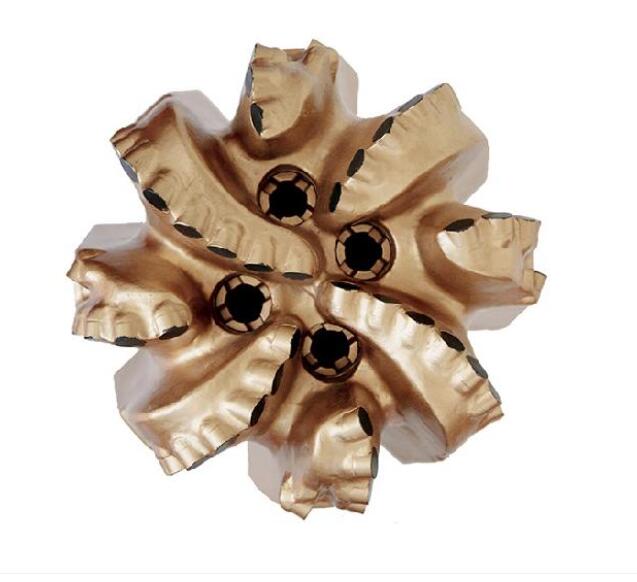

Steel Body PDC Bit 8 1-2” S1385FG /S433

8 1-2” S1385FG /S433

Description


Features

Deep blade and short parabolic configuration design, ensures optimal bottom hole flow pattern and anti-balling.
Optimize the cutting structure and places high quality cutters at different points, increases wear resistance and offensive of the bit.
Anti-whirl design improves ROP and enhances drilling stability.

Spiral Blade

Double rows spiral eight blades design,allows greater borehole coverage and better cutting structure,maximized enhances wear resistance and stability of the bit.

Extended Gauge

Extended gauge provides stable dilling without losing steerability and drilling with low torsional loads, Improves a high quality borehole.

Hardfacing

The surface of the blade is welded by wear- -resistant hardfacing material, improves wear resistance and erosion resistance of the bit.


Note

Technical Data



Bit

SPECIFICATIONS

RECOMMENDED PARAMETERS

size

Number of  bade

Primary Cutter Size

Nozzle Qty

Gauge Length

Connection

Rotary Speed(rpm)

 Weight On Bit(KN)

Flow Rate (lps)

8-1/2''

8

13mm

4

2''-3.5''

4-1/2"API REC

60-250

10-100

25~36
