PDC Drilling Bit

  • PDC Drilling Bit

  • PDC Drilling Bit

PDC Drilling Bit

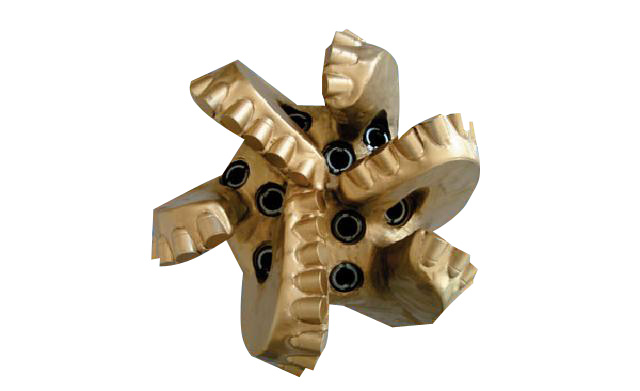

Ht2665 PDC drilling bit adopts 19mm claw PDC cutting teeth and large blade design. PDC bits can drill medium to medium hard strata. PDC bits are recommended to drill shale, mudstone, Cemented Sandstone and carbonate rock with medium compressive strength.


Inquire Now Next Product

Description

PDC drilling bit size

Diameter (inches)             12 1/4

Blade number                6

Main cutting tooth                  19mm

Number of nozzles                  9

Gauge length (inches)            3.5

Chip chute area (square inches)     41.4

Connecting buckle type         6 5/8 API Reg

Make up torque (kn. M)         49.6-51.4



Recommended PDC drilling bits's parameters

Speed (RPM)            60-260

WOB (KN)                 30-140

Maximum WOB (KN)        180

Displacement (LPS)          28-70
