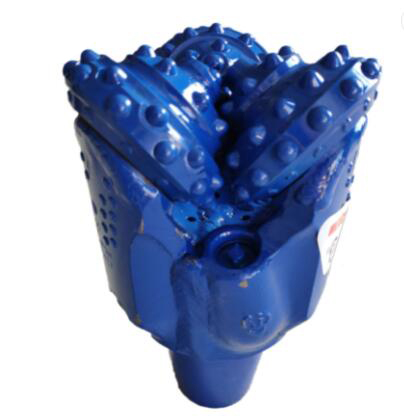

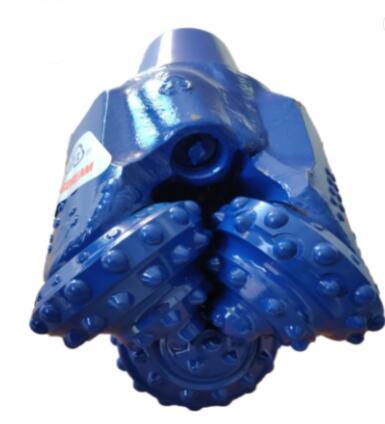

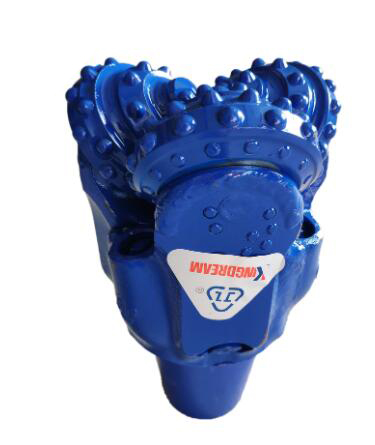

Kingdream 6 1/4" TCI Triocne Bit

Specification About Kingdream TCI Tricone Rock Roller Bit

1. Roller bits for Mining and Rock Drilling

The strength and wear resistance of inserts are improved
1. Roller bits for Mining and Rock Drilling
The strength and wear resistance of inserts are improve by using carbide inserts with high

strength and high wear resistance.
Surface of the high precision bearing heat treated by using advanced heat treatment process to

improve the load capacity and service life of the bearing.
The service life of the bearing is further extended by adopting harder and mort wear resistant

material for thrust bearing.
Preventing reflux structure has dual function, it can avoid air counterflow and dust entering into

bearing when the air-compressor stop working accidentally, and separate air and water

in order to avoid water entering into bearing when it works normally to prolong the life of bearing.

2. Roller bits for Oil Drilling

1. This series tricone bit use Sealed roller bearing structure. With rollers arranged in grooves

recessed in the cone body, the size of the bearing journal is increased.
2. Thrust bearing surfaces are hardfaced and treated with friction reducing technology.
3. Ball locked cone, suitable for high rotary speed.

3.Steel teeth Tricone bits
1 This series tricone bit use Journal bearing. Hardfaced head bearing surface. Cone bearing inlaid with friction reducing alloy and then silver-plated. The load capacity and seizure resistance of the

bearing is greatly improved.
2. O ring seal is made of the more wear resistance high saturated buna-N with the increased

seal section and precisely designed sealing flange in the cone sealing area increased the

reliability of the seal.
3. The bit bearing can be ball locked
4. For steel tooth bit, the tooth surface is hardfaced with new type of wear resistan
Material and thus extended working life of the cutting structure while still maintaining high ROP

Metal Sealed Bearing Tricone Bit

----Cutting Structure

Steel Tooth: Premium tungsten carbide hard facing on the surface, it’s greatly enhance the wear resistance of the tooth.Tungsten Carbide Inserts: Various type high quality tungsten carbide inserts can be equipped on the bits, professional and scientific selection of the inserts as per the different application and drilling process so that to achieve high efficient drilling production.

----Gauge Structure

Multiple gauge protection with gauge trimmers on heel and gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.

----Bearing Structure

Journal bearing and roller bearing types are available to be chosen. Abrasion & seizure resistance, loading capacity, stability of the bearing are well improved, suitable for high speed rotary drilling.

----Seals and Lubrication

The advanced metal seals improve the reliability and stability of the bearing sealing. Pressure difference type compensating system assures a good greasing lubrication function.

---- IADC

vary from 117--637 applicable for different type formation.
