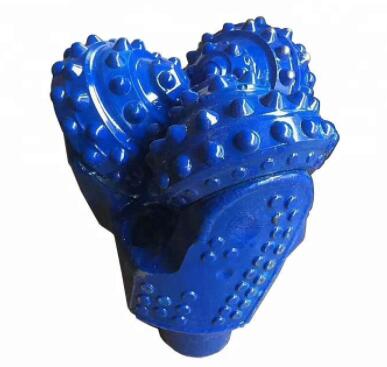

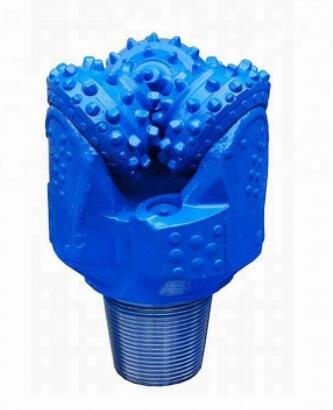

These kingdream drill bit, kingdream tricone bit, kingdream roller bit, kingdream drill bit are used to drill soft formation with low compressive strength and high drill ability, such as shale, clay, sandstone and soft limestone, etc.
Description
We can also supplying kingdream drill bit and Kingdream all series tricone drilling bits, kingdream tricone bit, kingdream roller bit, kingdream drill bit
Welcome to come and visit us.
1,The bearings adopt high precision radial sliding two way thrust bearings,teeth bearing surface hardfacing of hard alloy layer,the roller bearing is made of alloy after welding to improve the carrying capacity and anti bite ability.
2,Using high-precision metal seal. The metal seal is sealed by a carefully designed metal seal ring as a bearing, and two highly resilient rubber seals are located in the palm and the seal area of the teeth as a static seal. The optimized seal compression ensures that the two metal rings The sealing surface always maintains good contact.
3,Steel ball locking cone, suitable for high speed.
4,The use of a limited pressure differential and to prevent the drilling fluid into the lubrication system of the whole rubber reservoir, to provide a good lubrication guarantee for the bearing system .
5,Using the new grease with high resistance to 250 degrees Celsius and anti-wear.
Note
Sizes and types of kingdream drill bit/ kingdream drill bits that are not shown above can be customized according to specific drilling requirements.
